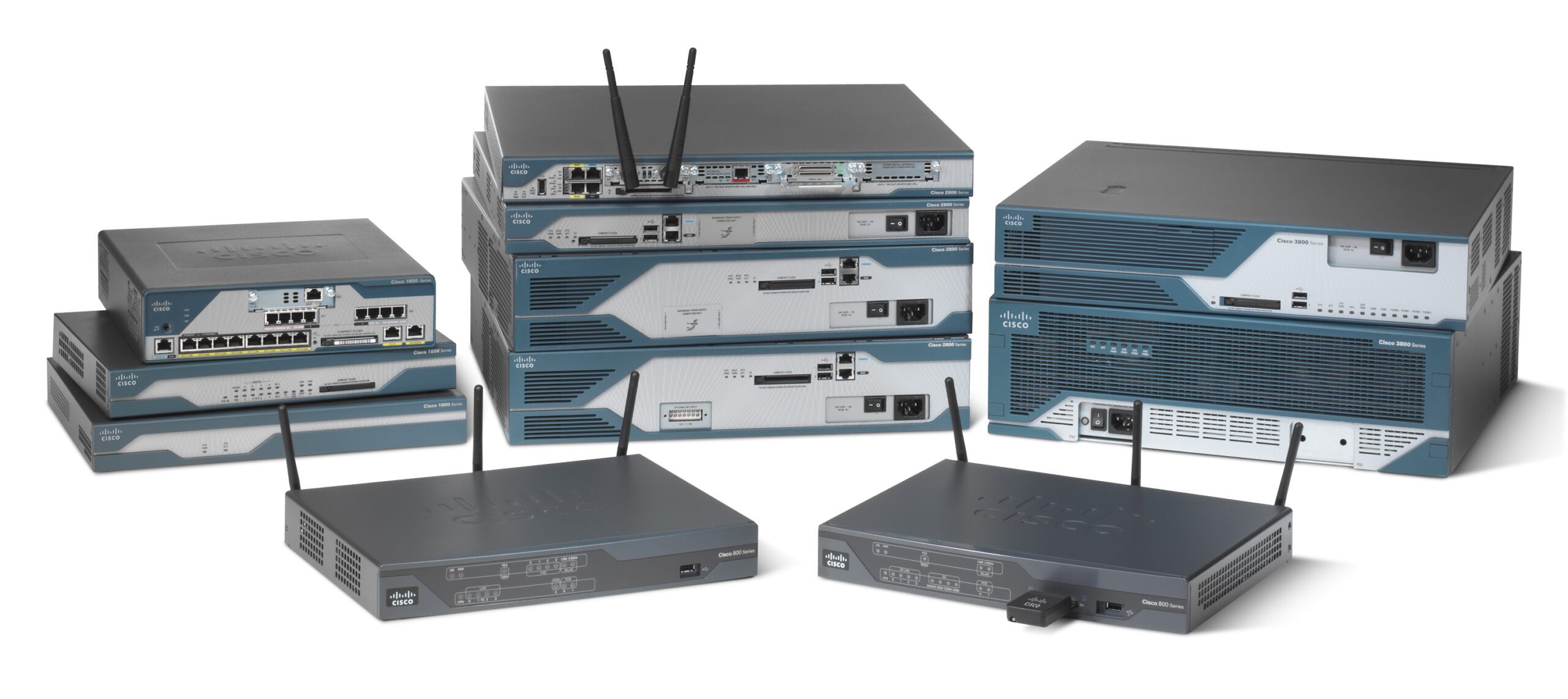

Setting Up Crypto on a Cisco Router: Configuration Made Simple

KEY TAKEAWAYS

• Cisco routers utilize cryptographic features, such as IPsec VPNs, to secure network communications.

• IPsec combines encryption, hashing, and authentication for secure data transfer.

• Key components: ACLs, ISAKMP/IKE policies, transform sets, and crypto maps.

• ACLs define which traffic to encrypt, referred to as “interesting traffic.”

• ISAKMP policies manage key platform and secure negotiation.

• Crypto maps connect all crypto elements and are applied to interfaces.

• Best practice: Use AES, prefer IKEv2, and maintain identical peer configurations.



In today’s interconnected world, securing data transmissions across networks is paramount. Cisco routers, widely used in enterprise networks, support robust encryption capabilities to secureguard communications.

Setting up on a Cisco router, particularly to establish IPsec VPNs, is a fundamental skill for network professionals aiming to protect data confidentiality and integrity. This article walks through the process of configuring crypto on Cisco routers in a simplified, step-by-step manner, demystifying the concepts and commands with practical examples.

Understanding Crypto on Cisco Routers

At its core, “” on a Cisco router refers to cryptographic technologies used to encrypt data passing through the router. The most common application is an IPsec (Internet Protocol Security) VPN, which establishes secure tunnels between devices over untrusted networks, such as the Internet. IPsec encrypts packets so that any intercepted data remains unreadable by unauthorised parties.

Cisco routers implement IPsec VPNs using several components working in concert:

• Access Control Lists (ACLs): Define which traffic should be encrypted (often called “interesting traffic”)
• ISAKMP/IKE Policies: Handle secure negotiation of keys and parameters between VPN endpoints
• Transform Sets: Specify encryption and integrity algorithms to protect the data
• Crypto Maps: Tie everything together, associating peers, ACLs, and transforms, and apply them to interfaces

This structure offers both flexibility and robust security, enabling tailored encryption schemes that cater to diverse networking requirements.

Preparation: Gathering Requirements

Before configuring on a Cisco router, collect these details:

• of both ends of the VPN tunnel (peers)
• Networks behind each router that should communicate securely
• Pre-shared keys for authentication, or digital certificates if using them
• Encryption and hashing preferred (e.g., AES, 3DES, SHA, MD5)

With this information, the configuration process is straightforward.

Step 1: Define the Traffic to Encrypt with ACL

The first step is to create an extended access control list that specifies the traffic passing through the VPN tunnel. This ACL is sometimes referred to as the crypto or “interesting traffic” ACL.

For example, assume two sites:

• Site A network: 10.10.10.0/24
• Site B network: 20.20.20.0/24

On the router at Site A, define the ACL to permit traffic from its local network to Site B’s network:

text

ip access-list extended VPN-TRAFFIC

permit ip 10.10.10.0 0.0.0.255 20.20.20.0 0.0.0.255

On Site B’s router, configure a reverse ACL to allow traffic from 20.20.20.0/24 to 10.10.10.0/24.

This ACL defines what traffic will be encrypted and sent through the tunnel.

Step 2: Configure ISAKMP (IKE) Policy

ISAKMP (Internet Security Association and Key Management Protocol), often coupled with IKE (Internet Key platform), handles negotiation of security parameters between the VPN endpoints.

Configure an ISAKMP policy on the router specifying encryption, hash, authentication type, Diffie-Hellman group, and lifetime. Here’s an example using IKEv1:

text

crypto isakmp policy 10

encr 3des

hash md5

authentication pre-share

group 2

lifetime 86400

This policy states the use of 3DES encryption, MD5 hashing, pre-shared key authentication, Diffie-Hellman group 2, and a lifetime of 86400 seconds.

Next, configure the pre-shared key for the remote peer:

text

crypto isakmp key YourPreSharedKey address <Peer_IP_Address>

Replace <Peer_IP_Address> with the router’s peer IP.

Step 3: Create the IPSec Transform Set

Transform sets define the actual encryption and authentication algorithms used to protect the IP data. A transform set typically contains an encryption algorithm and an integrity check method.

Example configuration:

text

crypto ipsec transform-set TS esp-3des esp-md5-hmac

This command creates a transform set named TS using ESP (Encapsulating Security Payload) with 3DES encryption and MD5 for integrity. Other options include and SHA algorithms.

Step 4: Configure Crypto Map and Bind Parameters

The crypto map serves as the glue that connects the ISAKMP policies, transform sets, ACLs, and peers. It instructs the router to direct which traffic to use which security configuration.

Create a crypto map with a name and sequence number, associate it with the peer, transform set, and ACL:

text

crypto map CMAP 10 ipsec-isakmp

set peer <Peer_IP_Address>

set transform-set TS

match address VPN-TRAFFIC

Here, the map named CMAP with sequence 10 uses the previously defined transform set TS, targets peer IP, and matches the VPN-TRAFFIC ACL.

Finally, apply the crypto map to the interface that connects to the untrusted network (usually the Internet-facing interface). For example, if the external interface is GigabitEthernet0/1:

text

interface GigabitEthernet0/1

crypto map CMAP

This activates IPsec encryption on outgoing packets matching the ACL.

Step 5: Verify the Configuration

later than completing the steps above on both VPN endpoints, verify the tunnel status and crypto associations:

• Show crypto isakmp sa — displays ISAKMP security associations.
• Show crypto ipsec sa — shows the IPSec security associations and statistics.
• Show crypto map — lists the crypto map configurations.

A successful configuration displays active security associations, indicating that encrypted traffic is flowing securely.

Practical Example Summary

Assuming Site A’s router is configured toward Site B:

text

ip access-list extended VPN-TRAFFIC

permit ip 10.10.10.0 0.0.0.255 20.20.20.0 0.0.0.255

crypto isakmp policy 10

encr 3des

hash md5

authentication pre-share

group 2

lifetime 86400

crypto isakmp key MySecretKey address 20.20.20.1

crypto ipsec transform-set TS esp-3des esp-md5-hmac

crypto map CMAP 10 ipsec-isakmp

set peer 20.20.20.1

set transform-set TS

match address VPN-TRAFFIC

interface GigabitEthernet0/1

crypto map CMAP

Site B’s router uses analogous commands with addresses reversed and the identical keys and policies.

Additional Tips and Best Practices

Below are tips and best practices:

• Use Secure Encryption Methods: Prefer AES over 3DES as it is more secure and efficient.
• IKEv2 over IKEv1: For newer Cisco devices, prefer IKEv2, which offers better security and flexibility.
• Pre-Shared Keys or Certificates: Use strong pre-shared keys or digital certificates for authentication.
• Keep Configurations Synchronised: Both VPN peers must use matching crypto maps, ACLs, transform sets, and ISAKMP policies.
• Use Meaningful Names: Consistently naming ACLs, transform sets, and crypto maps assists maintain clarity.
• Backup Configurations: Always save and back up working configurations before making changes.

Mastering Cisco Router Crypto: Building Secure IPsec VPNs with Confidence

Setting up crypto on a Cisco router, particularly to enable an IPsec VPN, may initially appear complex due to numerous components involved. However, by breaking down the configuration into discrete, logical steps, defining traffic, setting up ISAKMP policies, creating transform sets, binding them to crypto maps, and applying them to interfaces, the process becomes manageable and transparent.

With practice and understanding of these foundational elements, network administrators can confidently secure data communications between remote sites or users, protecting critical information from interception or tampering.

FAQ

What does “crypto” mean on a Cisco router?
“Crypto” refers to encryption functions such as IPsec VPNs that secure data passing through the router by encrypting and authenticating packets.

Why is IPsec significant in network security?
IPsec ensures data confidentiality, integrity, and authentication across untrusted networks, protecting communications between remote sites or users.

What are the main components of IPsec configuration on Cisco routers?
ACLs, ISAKMP/IKE policies, transform sets, and crypto maps work together to define what traffic is encrypted and how encryption is applied.

What is an ISAKMP policy used for?
It specifies parameters like encryption type, hashing algorithm, authentication method, and key lifetime for establishing secure VPN connections.

What’s the role of a transform set?
A transform set defines the specific encryption (e.g., AES, 3DES) and integrity algorithms (e.g., SHA, MD5) applied to secure traffic.

Why is the crypto map significant?
The crypto map links peers, ACLs, and transform sets, telling the router which traffic to encrypt and applying the configuration to the correct interface.

How do I verify that my VPN tunnel is working?
Use commands such as ‘show crypto isakmp sa’ and ‘show crypto ipsec sa’ to confirm active security associations and encrypted traffic flow.
